2023
Bonfire Stories
DESCRIPTION
The installation symbolically reconstructs the bonfire environment found in nature, where information and stories were traditionally shared orally, allowing for knowledge of the past and imagination of the future. The conveyed information is presented interactively, akin to precious testimonies, providing a personal and educational experience without being overly rhetorical. It aims to create an immersive and collective-based encounter that emotionally engages visitors for a flexible duration of time.
CODE
Teensy 1 (audio) Github Repository Here ︎︎︎
Teensy 2 (visual) Github Repository Here ︎︎︎
Help with analogue power conversions and code from Marco Lurati
The installation symbolically reconstructs the bonfire environment found in nature, where information and stories were traditionally shared orally, allowing for knowledge of the past and imagination of the future. The conveyed information is presented interactively, akin to precious testimonies, providing a personal and educational experience without being overly rhetorical. It aims to create an immersive and collective-based encounter that emotionally engages visitors for a flexible duration of time.
CODE
Teensy 1 (audio) Github Repository Here ︎︎︎
Teensy 2 (visual) Github Repository Here ︎︎︎
Help with analogue power conversions and code from Marco Lurati
TECHNICAL SPECIFICATIONS
Sensors

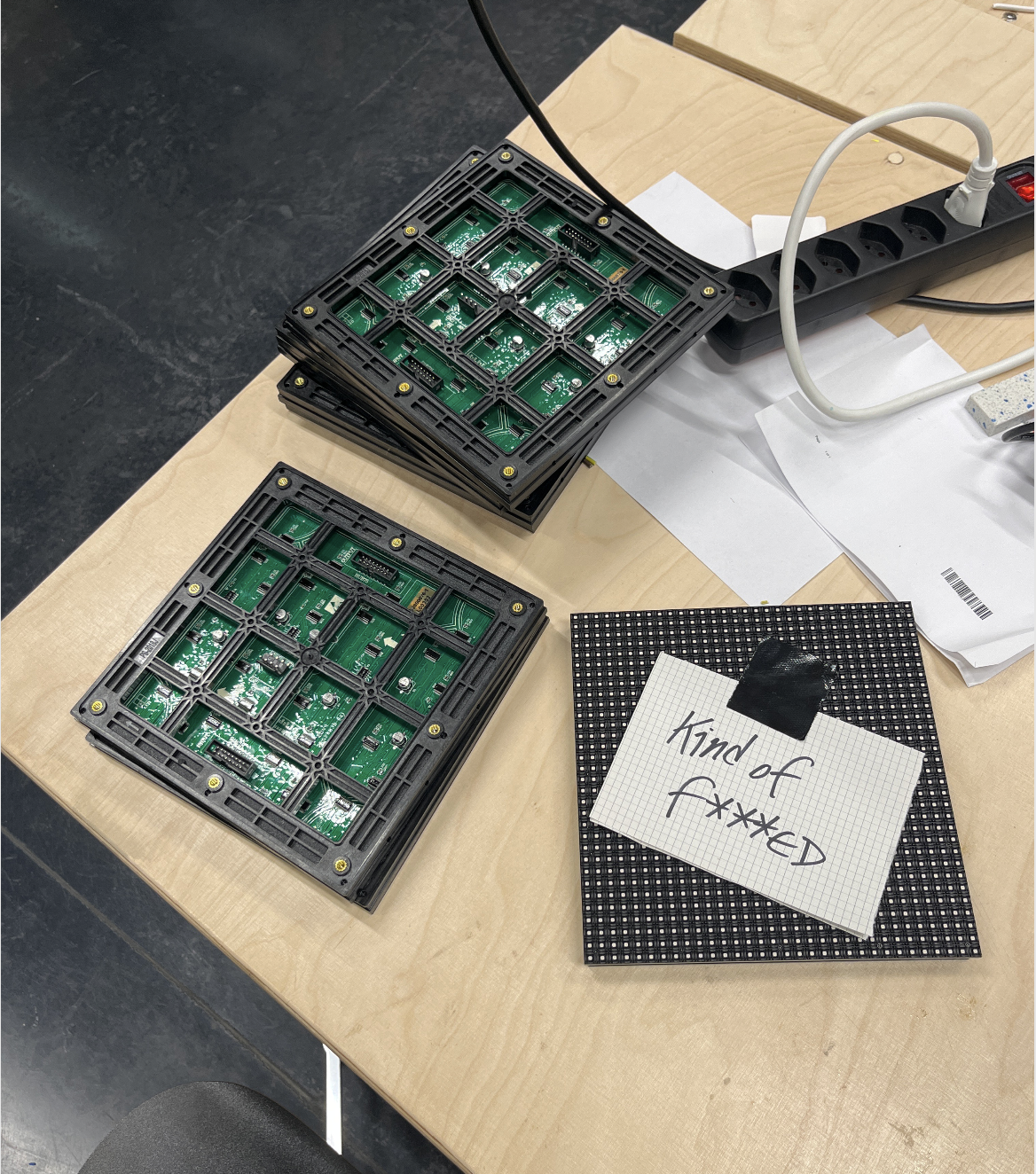

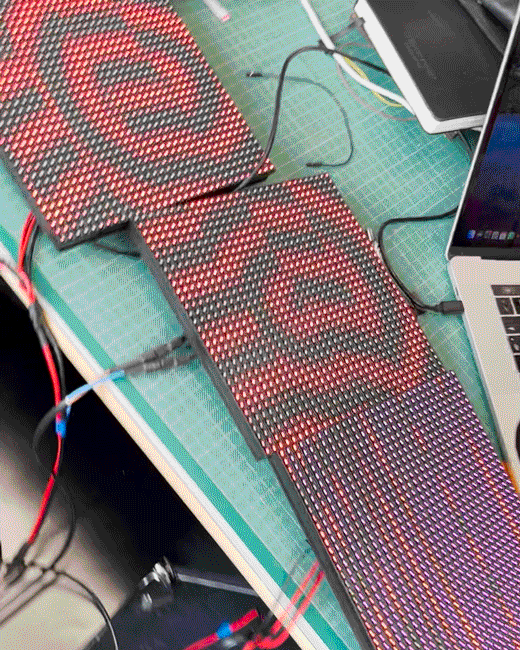

9x 32 x 32 pixel LED Matrices
9x Ribbon Cables
2x Teensy Microprocessors
1x Teensy Smart Matrix Shield
1x Teensy Audio Shield
3x Grove Ultrasonic Distance Sensor
3x 100 Farrad capacitors
3x 104 0.1 Farrad ceramic capacitors
3x 330 resistors
Software
Arduino IDE, Fusion 360, Prusa Slicer, Trotec Ruby
Additional Physical Materials
Trotec Laser Cutter, Prusa MK2 3D Printer, 8 mm plywood, Screws, L-braces, Wood for legs, Speaker and AUX cable
Sensors
9x 32 x 32 pixel LED Matrices
9x Ribbon Cables
2x Teensy Microprocessors
1x Teensy Smart Matrix Shield
1x Teensy Audio Shield
3x Grove Ultrasonic Distance Sensor
3x 100 Farrad capacitors
3x 104 0.1 Farrad ceramic capacitors
3x 330 resistors
Software
Arduino IDE, Fusion 360, Prusa Slicer, Trotec Ruby
Additional Physical Materials
Trotec Laser Cutter, Prusa MK2 3D Printer, 8 mm plywood, Screws, L-braces, Wood for legs, Speaker and AUX cable
PROCESS
